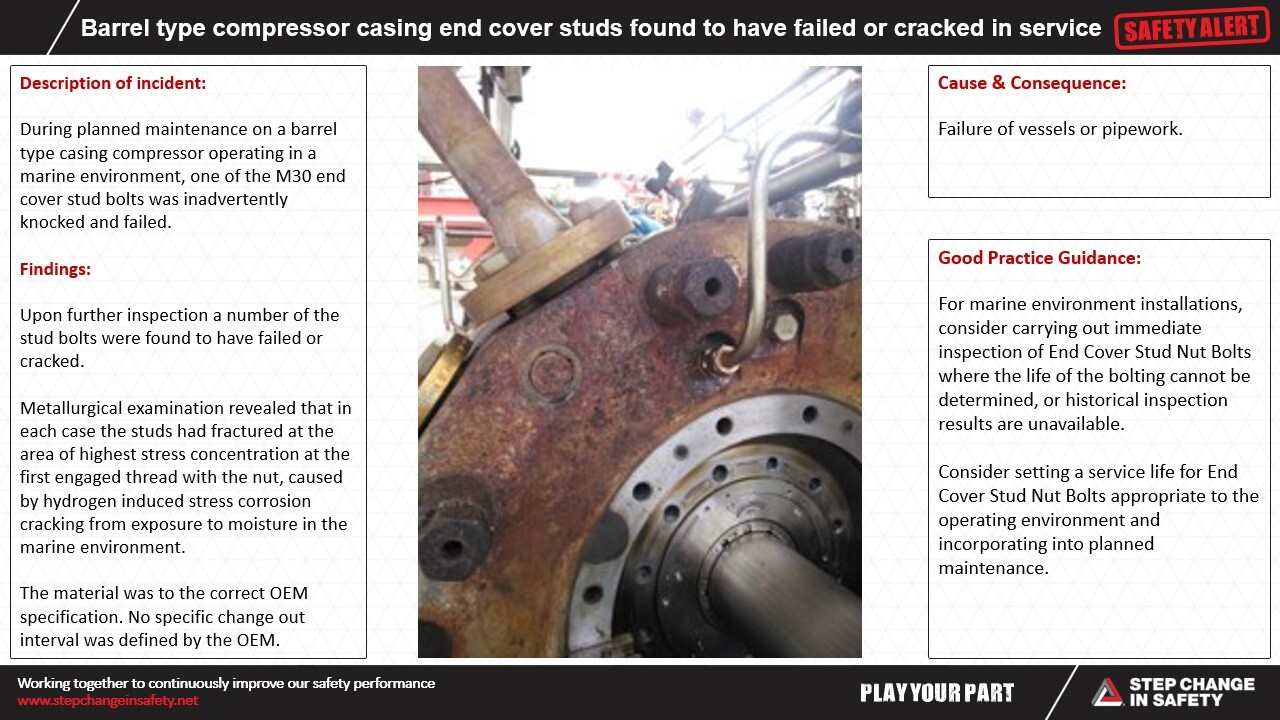

Barrel type compressor casing end cover studs found to have failed or cracked in service

During planned maintenance on a barrel type casing compressor operating in a marine environment, one of the M30 end cover stud bolts was inadvertently knocked and failed.

Findings

Upon further inspection a number of the stud bolts were found to have failed or cracked.

Metallurgical examination revealed that in each case the studs had fractured at the area of highest stress concentration at the first engaged thread with the nut, caused by hydrogen induced stress corrosion cracking from exposure to moisture in the marine environment.

The material was to the correct OEM specification. No specific change out interval was defined by the OEM.
