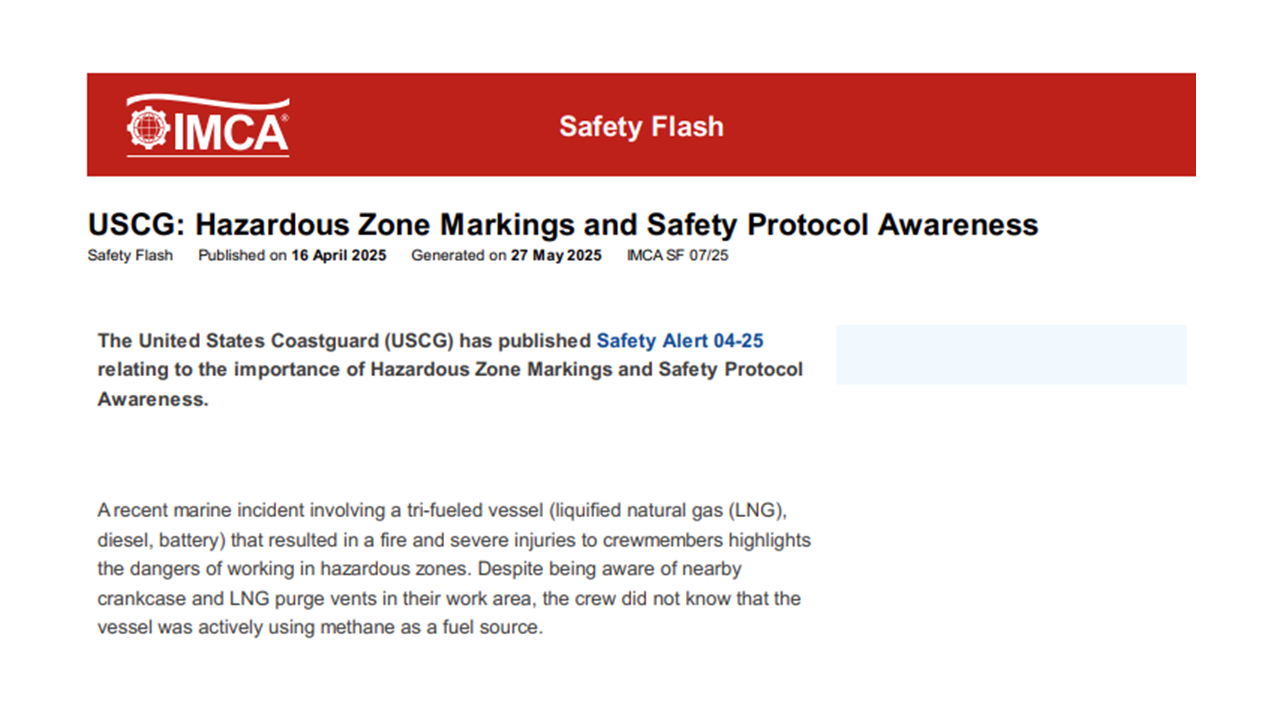

USCG: Hazardous Zone Markings and Safety Protocol Awareness

The United States Coastguard (USCG) has published Safety Alert 04-25 relating to the importance of Hazardous Zone Markings and Safety Protocol Awareness.

A recent marine incident involving a tri-fueled vessel (liquified natural gas (LNG), diesel, battery) that resulted in a fire and severe injuries to crewmembers highlights the dangers of working in hazardous zones. Despite being aware of nearby crankcase and LNG purge vents in their work area, the crew did not know that the vessel was actively using methane as a fuel source.

As a result, the work was being conducted in a hazardous zone (see Figure 1). Although marked as a hazardous zone on the vessel’s plans, the zones were not physically or otherwise marked as hazardous on the deck, providing no visual indication to the crew of the potential hazards present. While crew performed assigned work on top of the pilothouse a failed engine purge valve actuator released LNG vapours through the vents located in the crew’s work area. Believing the area was gas-free, a crewmember struck a lighter, igniting the LNG fumes and causing severe injury to both crewmembers.

This incident shows the critical importance of hazard awareness, proper marking of hazardous zones, and strict adherence to safety protocols.

To view this safety alert published by IMCA from The United States Coastguard (USCG) in full, click the 'Download Alert' button above.
